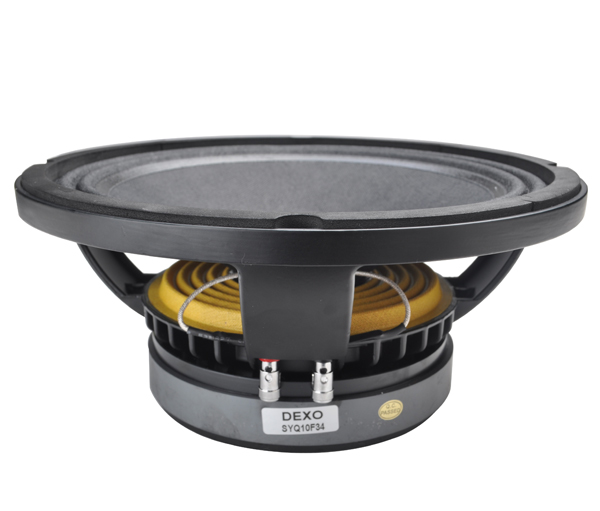

LF Speaker Ferrite SYQ10F34

  • Online services:jmhualo
  • Details

  • Contact Us

Insulation fastener

Insulation fastener

Insulation fastener

Insulation fastener

Insulation fastener

GENERAL SPECIFICATION
MODELMR15H49A
Nominal Diameter380mm/15inch
Nominal Impedance8ohm
AES Power Handling550watts
Continuous Program Power1100watts
Sensitivity 1W/1M96.5dB
Frequency Range55~2.7kHz
Voice Coil Diameter100mm/4inch
Winding MaterialCopper
Former MaterialGlass Fibre
Winding Depth18.5mm
Magnetic Gap Depth10mm
Surround MaterialPolycotton
Surround DesignTriple-roll

Magnet φ220

Ferrite Ring

MOUNTING & SHIPPING INFORMATION
Overall Diameter388mm
Bolt Circle Diameter372mm
Baffle Cutout Diameter358mm
Depth142mm
Net Weight10.2kg
Shipping Weight11.3kg
Shipping Box(Single)39.5x39.5x17cm
Shipping Weight(2 Unit)23.5kg

Shipping Box(2 Unit)

40.5x40.5x39cm


THIELE & SMALL PARAMETERS
Resonance Frequency55Hz
DC Resistance 5.2Ω
Mechanical Factor13.63
Electrical Factor0.47
Total Factor0.45
BL Factor20.1T.m
Effective Moving Mass113gr
Compliance86.3μ M/N
Equivalent Cas Air Load81.33dm3
Effective Piston Area881.4cm2
η(Eta Zero)0.02823
